SPECIFICATIONS
|
CAMERA |
|
|
Image Sensor |
1/3” Progressive Scan CMOS |
|
Shutter Speed |
1/3 to 1/10000 s |
|
Slow Shutter |
Yes |
|
Minimum Illumination |
0.01 Lux; 0 Lux with IR/White light |
|
Day/Night Mechanism |
IR Cut Filter |
|
Day/Night Switch |
Unified/ Scheduled/ Auto |
|
LENS |
|
|
Type |
Fixed Focal Lens |
|
Focal Length |
2.8/4 mm |
|
Aperture |
F2.0 |
|
FOV |
• 2.8 mm: |
|
Lens Mount |
M12 |
|
DORI Distance |
• 2.8 mm |
|
Angle Adjustment (Manual) |
|
|
Range |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
|
ILLUMINATOR |
|
|
Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
|
Integrated Infrared-White LED |
• Quantity: 2 |
|
VIDEO |
|
|
Max. Resolution |
1920x1080 |
|
Main Stream |
• Frame Rate： |
|
Sub-Stream |
• Frame Rate： |
|
Bit Rate Control |
CBR, VBR |
|
Video Compression |
• Main Stream: H.265+/H.265/H.264+/H.264 |
|
H.264 Type |
High Profile |
|
H.264+ |
Main Stream Supported |
|
H.265 Type |
Main Profile |
|
H.265+ |
Main Stream Supported |
|
Video Bit Rate |
• Main Stream: 256 Kbps to 4 Mbps |
|
Image |
|
|
Image Settings |
• Mirror |
|
Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
|
Wide Dynamic Range |
DWDR |
|
SNR |
≥ 52 dB |
|
Image Parameters Switch |
Yes |
|
Privacy Mask |
Up to 4 Masks |
|
ROI |
1 Region |
|
OSD Setting |
Yes |
|
AUDIO |
|
|
Audio Communication |
N/A |
|
Audio Input |
Yes (Built-in Microphone) |
|
Audio Output |
N/A |
|
Audio Compression |
Yes |
|
Audio Sampling Rate |
8 KHz |
|
Environment Noise Filtering |
Yes |
|
Audio Bit Rate |
64 Kbps(G.711 alaw) |
|
NETWORK |
|
|
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP |
|
ONVIF |
Yes |
|
API |
Open Network Video Interface (Profile S/T) |
|
Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
|
Client |
VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
|
Web Browser |
• Google Chrome® 57 and above |
|
Cloud |
Yes |
|
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
|
ALARM AND EVENT MANAGEMENT |
|
|
Smart Event |
• Intrusion Detection |
|
Basic Event |
• Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts) |
|
Alarm Linkage |
• Upload to FTP server |
|
INTERFACES |
|
|
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
|
Alarm |
N/A |
|
Reset Button |
N/A |
|
Power |
PoE Power Port |
|
On-board Storage |
N/A |
|
Built-in Microphone |
Yes; Records Anything Going on within a 16.4 ft (5 m) Radius of the Camera |
|
Built-in Speaker |
N/A |
|
Audio |
N/A |
|
GENERAL |
|
|
Operating Temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
|
Storage Temperature |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Operating Humidity |
95% or Less (Non-Condensing) |
|
Storage Humidity |
95% or Less (Non-Condensing) |
|

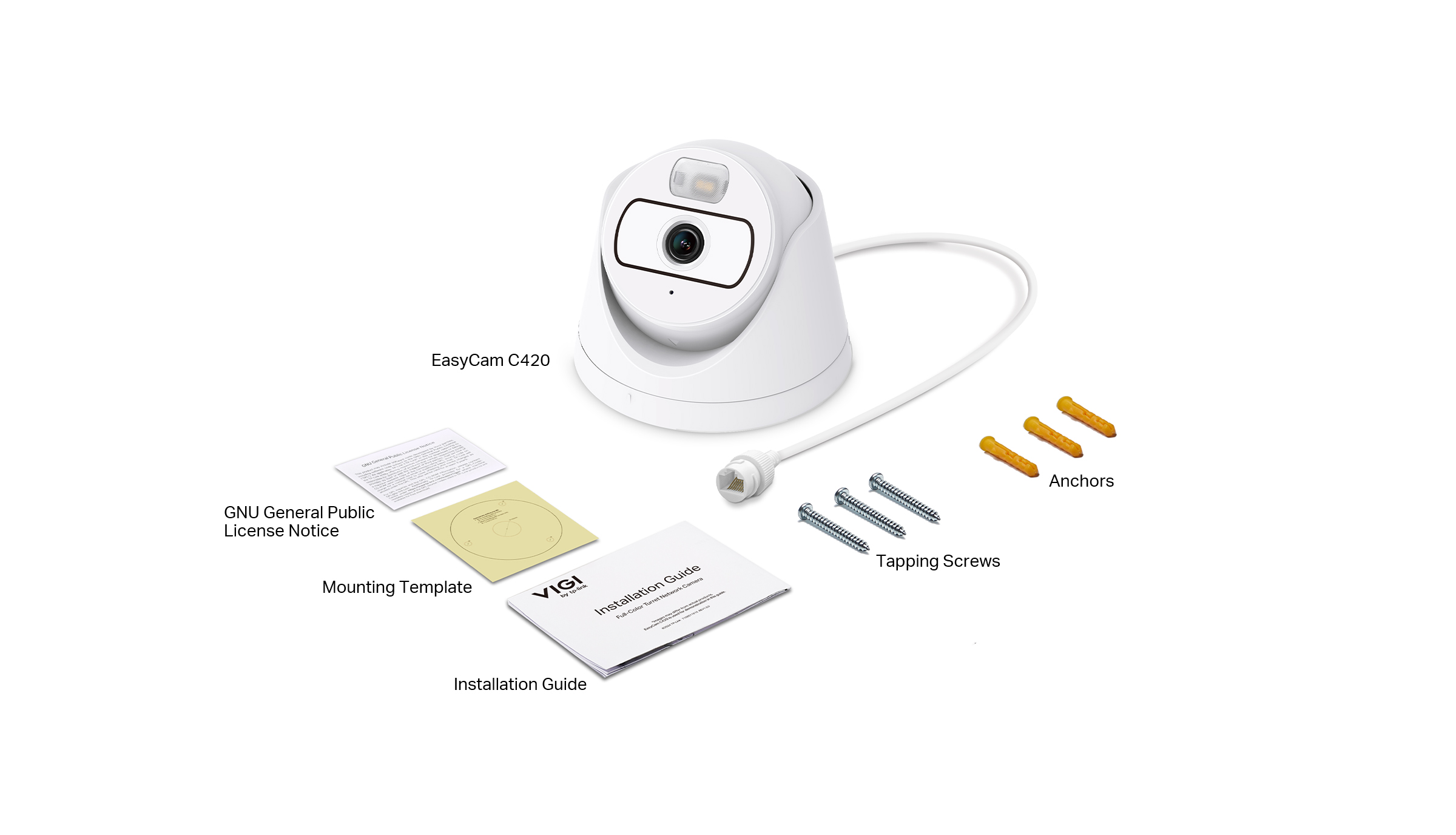

Package Content |
• VIGI Network Camera |
|
Material |
Plastic |
|
Net Weight |
0.165 Kg |
|
Power Supply |
PoE: 802.3af, class 0, Max. 7.1 W |
|
Protection |
N/A |
|

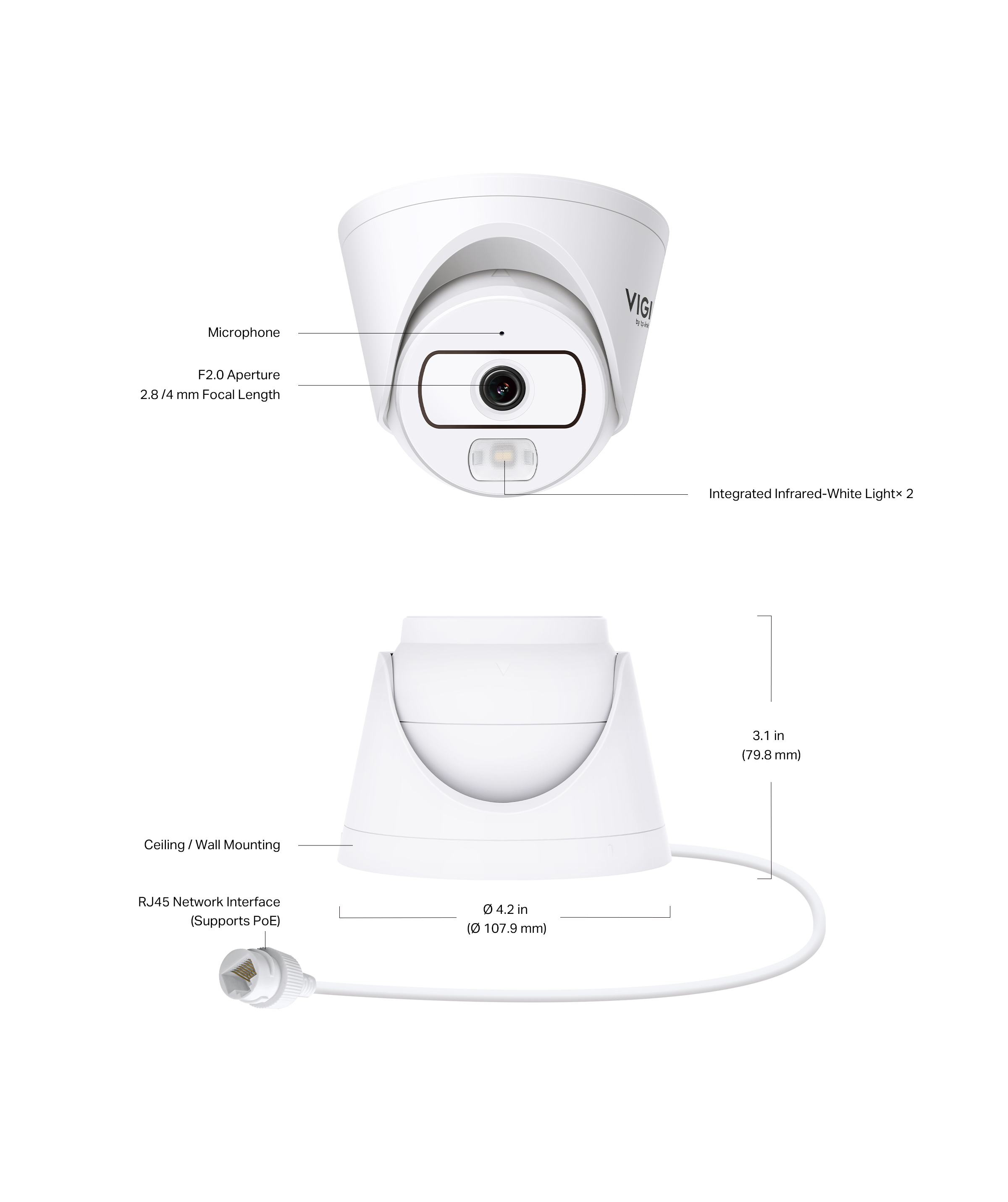

Product Dimensions (L x W x H) |
Ø4.2 × 3.1 in (Ø107.9 × 79.8 mm) |
|
Certifications |
CE, KC, VCCI, BSMI, ONVIF |
| Size |
4mm, 2.8mm |
|---|
