SPECIFICATIONS
CAMERA
• Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
LENS
• Type: Fixed Focal Lens
• Focal Length: 2.8/4 mm
• Aperture: F2.0
• FOV
- 2.8 mm: Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117°
- 4 mm: Horizontal FOV: 75.2°, Vertical FOV: 40.8°, Diagonal FOV: 88.3°
• Lens Mount: M12*P 0.5
• DORI Distance
2.8 mm
- Detect: 154.2 ft (47 m)
- Observe: 62.3 ft (19 m)
- Recognize: 29.5 ft (9 m)
- Identify: 16.4 ft (5 m)
4 mm
- Detect: 193.6 ft (59 m)
- Observe: 82 ft (25 m)
- Recognize: 39.4 ft (12 m)
- Identify: 19.7 ft (6 m)
ANGLE ADJUSTMENT (MANUAL)
• Range: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

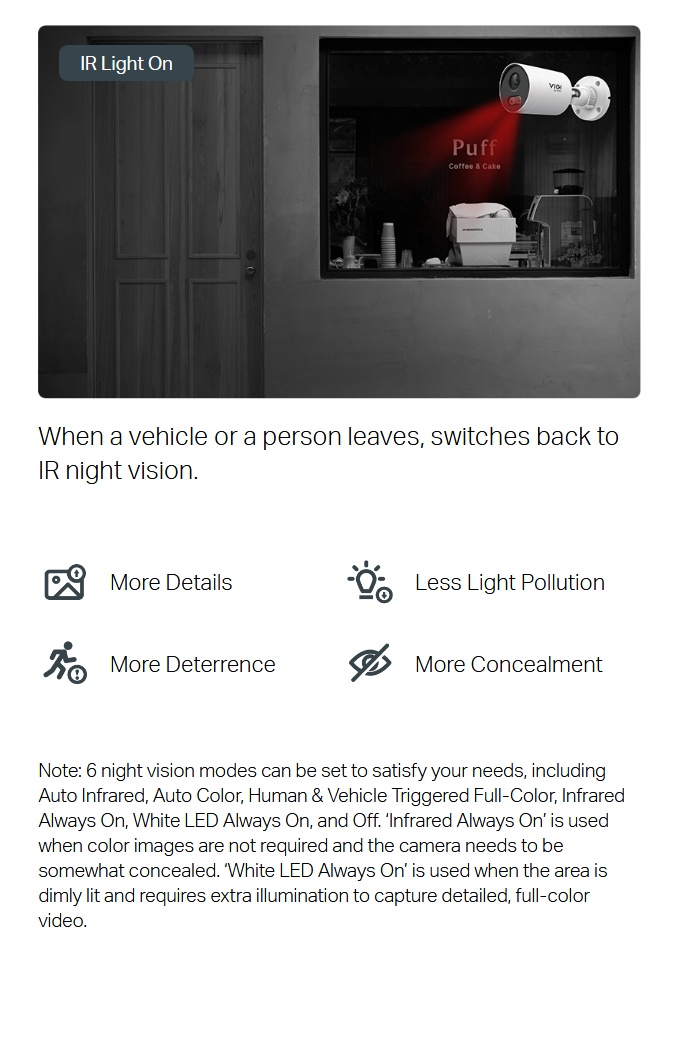

ILLUMINATOR
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

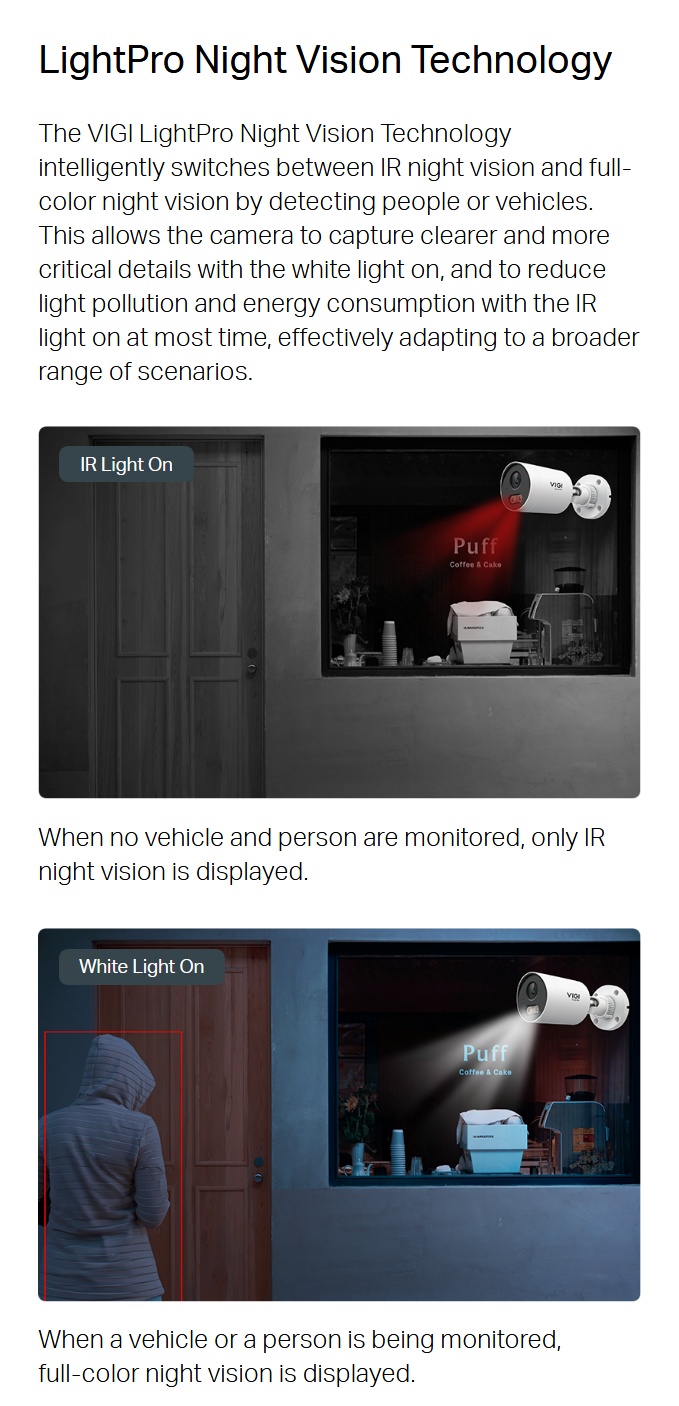

• Integrated Infrared-White LED
- Quantity: 2
- IR Range: 98 ft (30 m)**
- White LED Range: 98 ft (30 m)**
- IR Wavelength: 850 nm
VIDEO
• Max. Resolution: 1920x1080
• Main Stream
- Frame Rate：
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 1920x1080, 1280x960, 1280x720
- Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps.
• Sub-Stream
- Frame Rate：
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
- Note: If the image rotation is set to 90°, the frame rate only supports up to 20fps.
• Bit Rate Control: CBR, VBR
• Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
• H.264 Type: High Profile
• H.264+: Main Stream Supported
• H.265 Type: Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate
- Main Stream: 256 Kbps to 4 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps
• Image Settings
- Mirror
- Brightness
- Contrast
- Saturation
- Sharpness
- Exposure
- WDR
- White Balance
- Prevent Overexposure to Infrared Light
- HLC Adjustable by Client Software

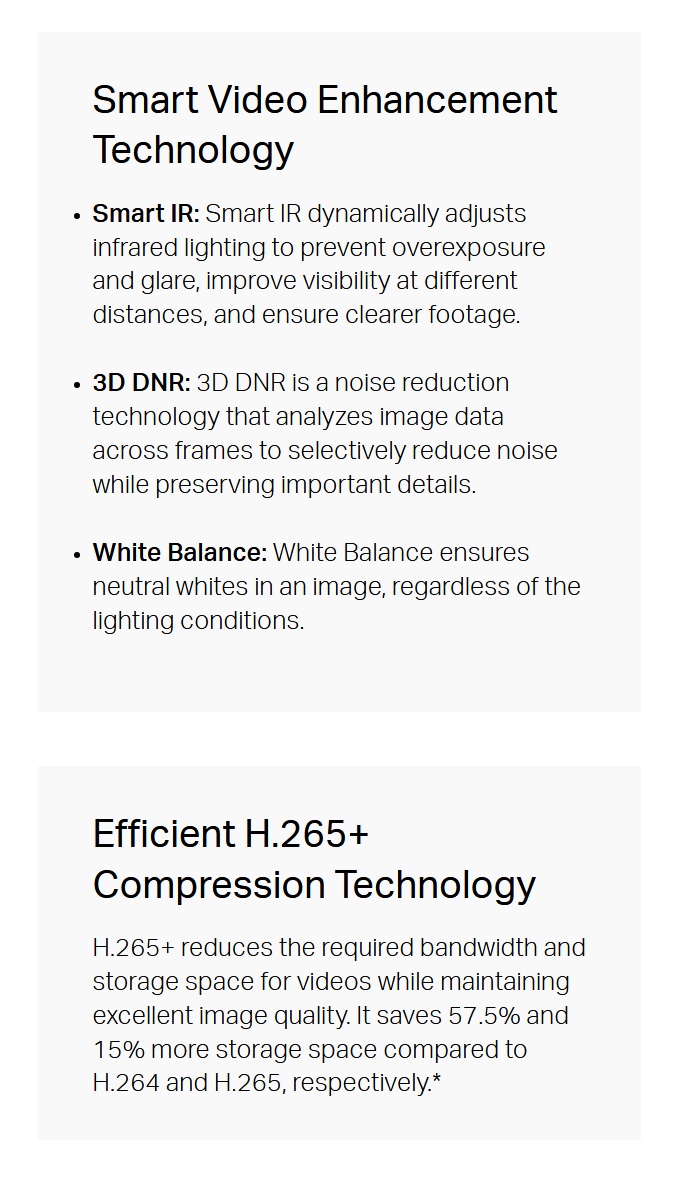

• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes
AUDIO
• Audio Communication: N/A
• Audio Input: Yes (Built-in Microphone)
• Audio Output: N/A
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
• ONVIF: Yes
• API: Open Network Video Interface (Profile S/T)
• Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
• Web Browser
- Google Chrome® 57 and above
- Firefox® 52 and above
- Safari® 11 and above
- Microsoft® Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest • Authentication
ALARM AND EVENT MANAGEMENT
• Smart Event
- Intrusion Detection
- Line-Crossing Detection
- Region Entering Detection
- Region Exiting Detection
- People Detection
- Vehicle Detection
• Basic Event

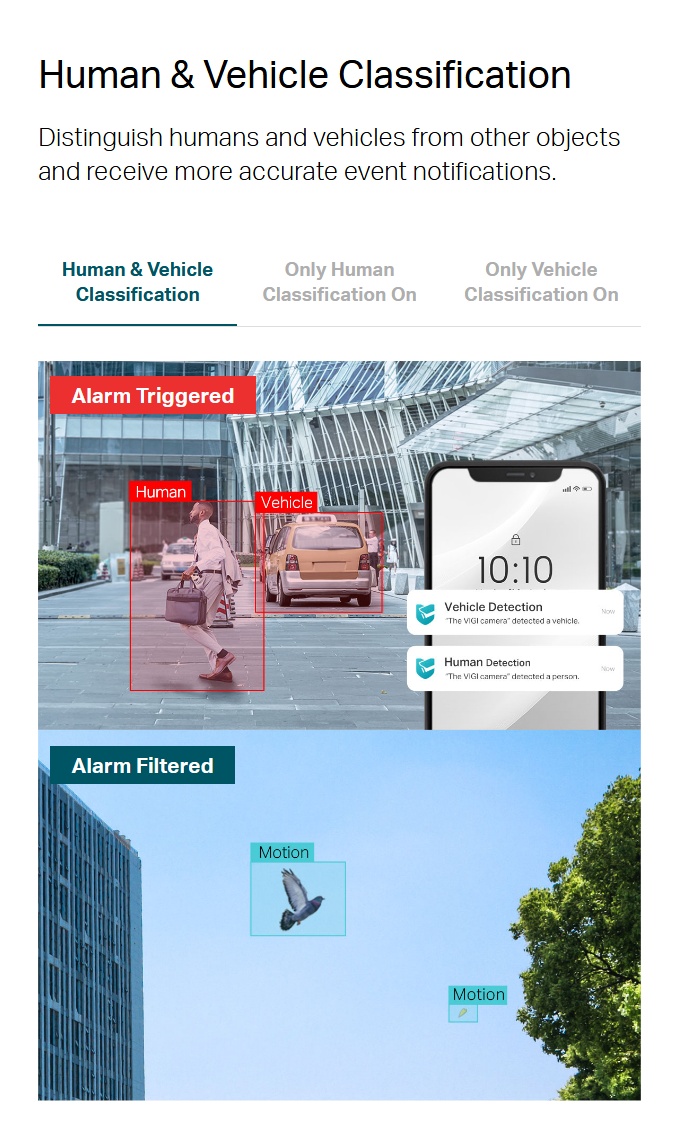

- Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
- Video Tampering Detection
- Exception ( Illegal Login)
• Alarm Linkage
- Sending Email
- Send to Alarm Server
- Upload to FTP
- Message Push
DEEP LEARNING FUNCTION
• People & Vehicle Analytics: N/A
INTERFACES
• Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm: N/A
• Reset Button: N/A
• Power: DC Power Port
• On-board Storage: N/A
• Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
• Built-in Speaker: N/A
• Audio: N/A
GENERAL
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Metal
• Power Supply
- 12V DC ± 5%, Max. 7.4W, 5.5 mm Coaxial Power Plug
- PoE: 802.3af/at, class 0, Max. 8W
• Protection: IP67
• Certifications: CE, FCC, BSMI, VCCI, KC, NTRA
PACKAGE CONTENTS
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories

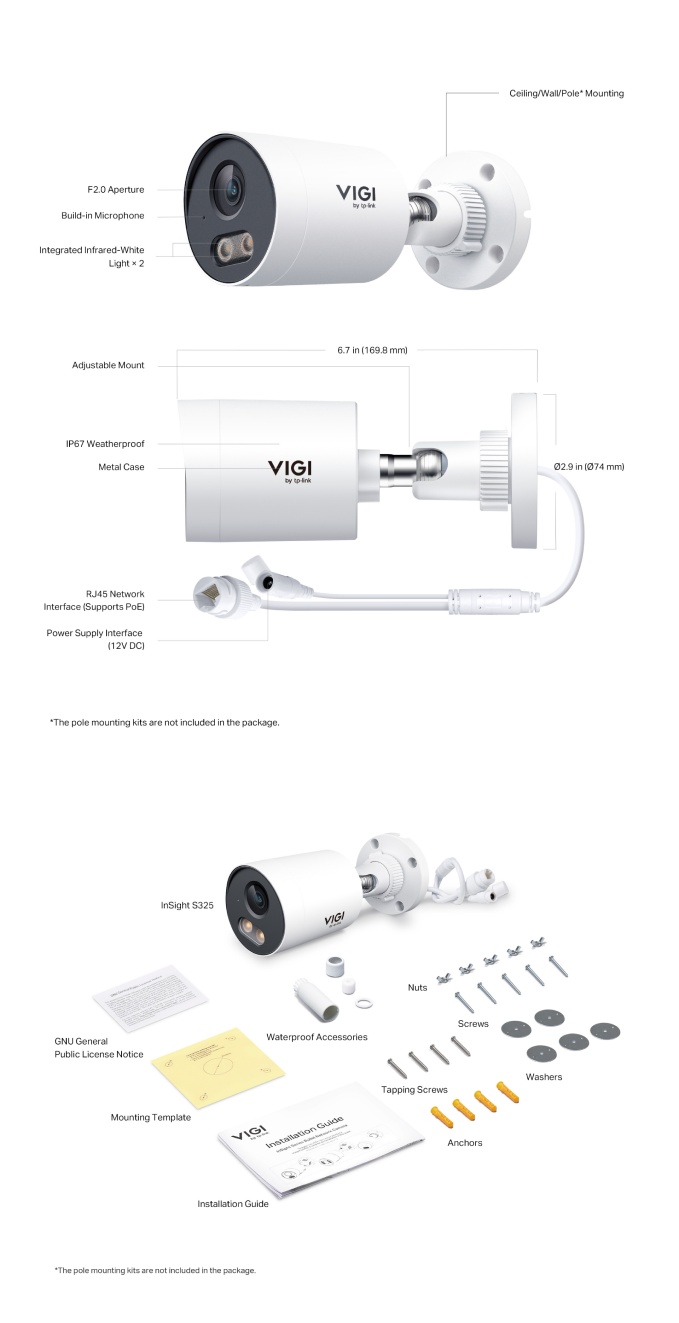

DIMENSIONS
• Product Dimensions (L x W x H): 6.7 × 2.9 × 2.9 in (169.8 × 74 × 74 mm)
• Net Weight: 0.353 Kg
| Size |
4mm, 2.8mm |
|---|
