TP-Link Switch Omada ES205GP 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ Port Isolation For Reliable Surveillance Networking

HARDWARE FEATURES

Interface

• 5 × 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)
• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

• Desktop
• Wall Mount

Physical Security Lock

√

Power Supply

DC Power Adapter (Output: 53.5 VDC / 1.31 A)

PoE Ports (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65 W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery
• Up to 250m PoE transmission distance

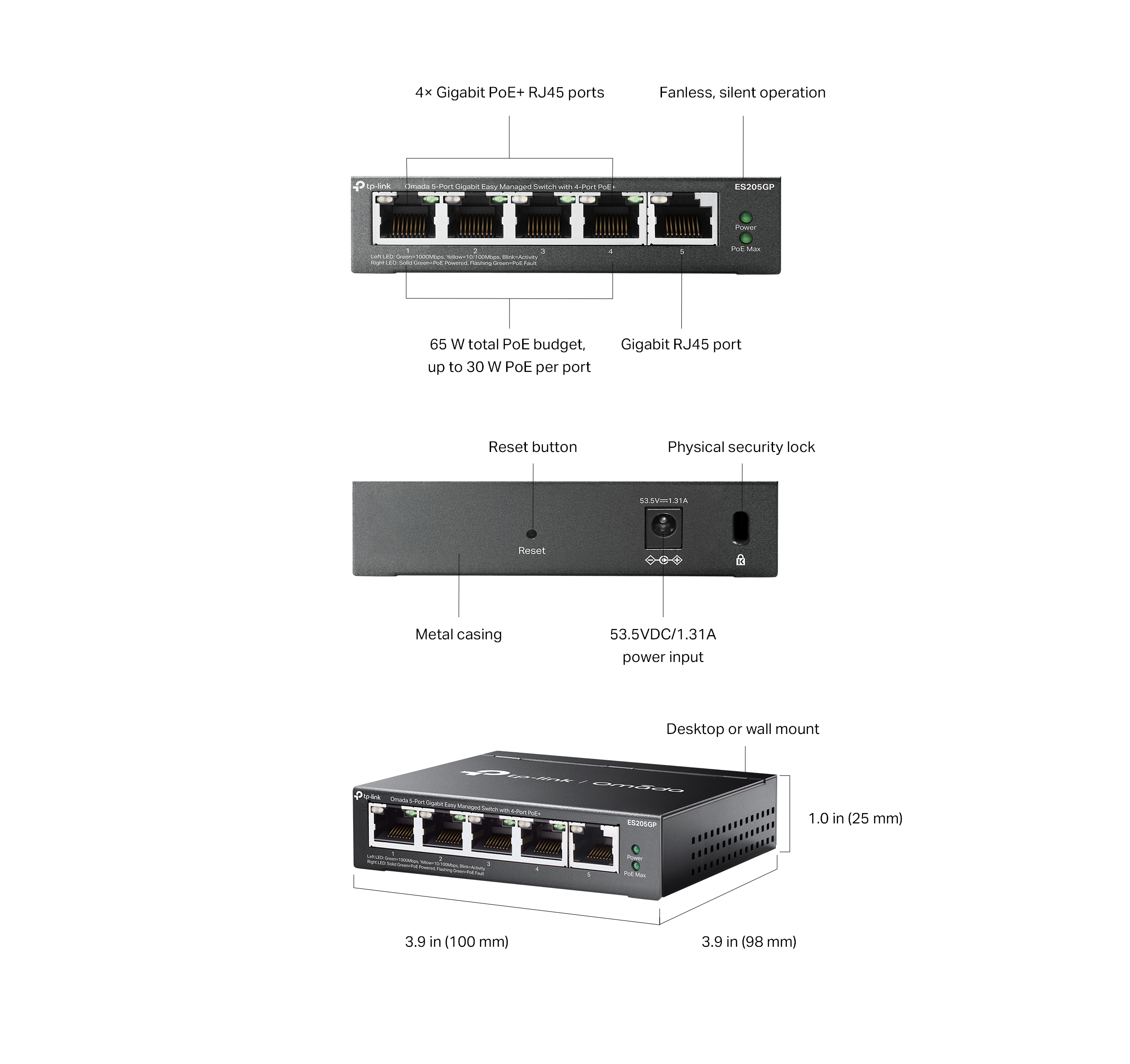

Dimensions ( W x D x H )

3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

PERFORMANCE

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

8K

Packet Buffer Memory

4 Mbit

Jumbo Frame

15 KB

SOFTWARE FEATURES

Quality of Service

• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control

L2 Features

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP

L2 Multicast

• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave

VLAN

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

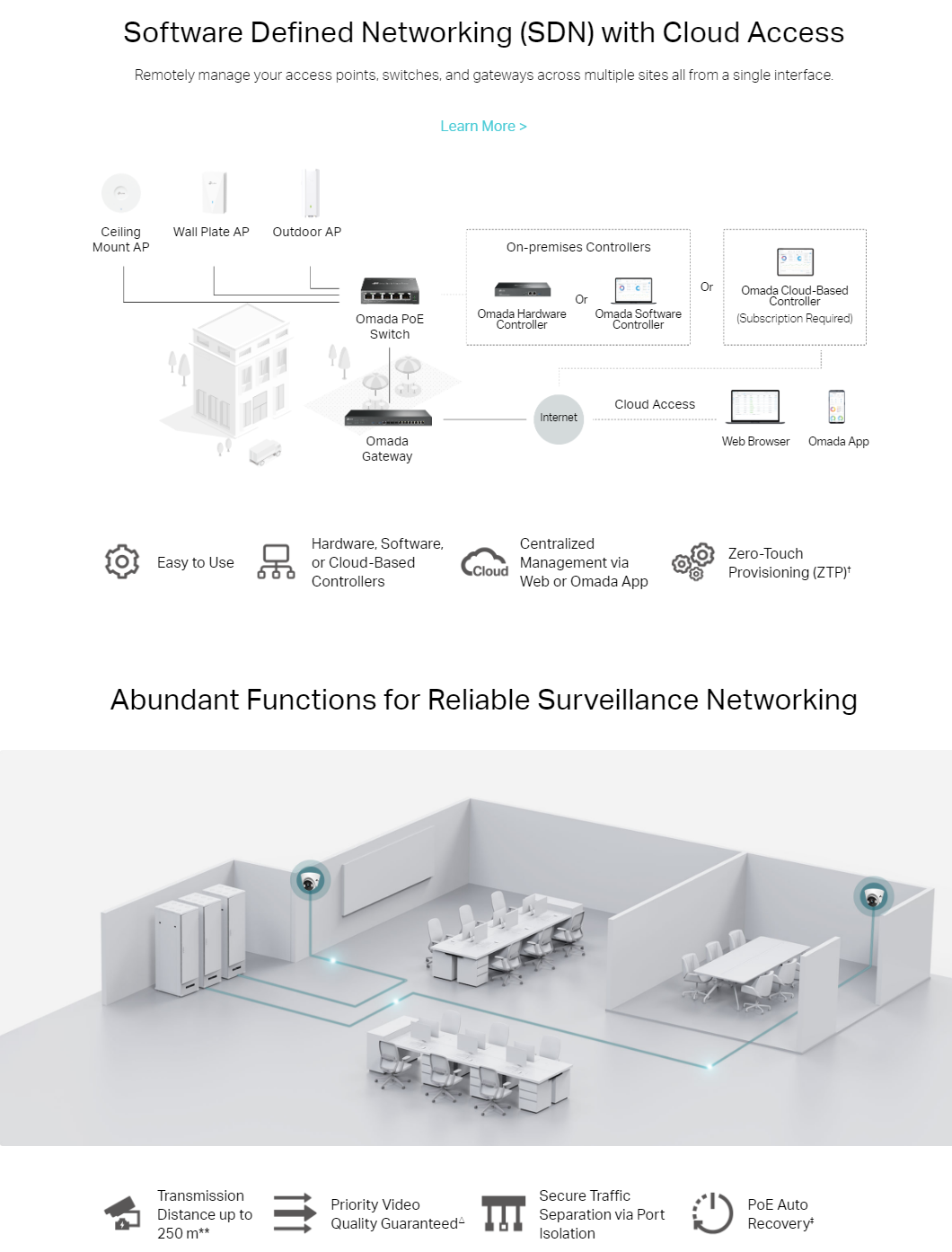

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

OTHERS

Certification

FCC, CE, RoHS

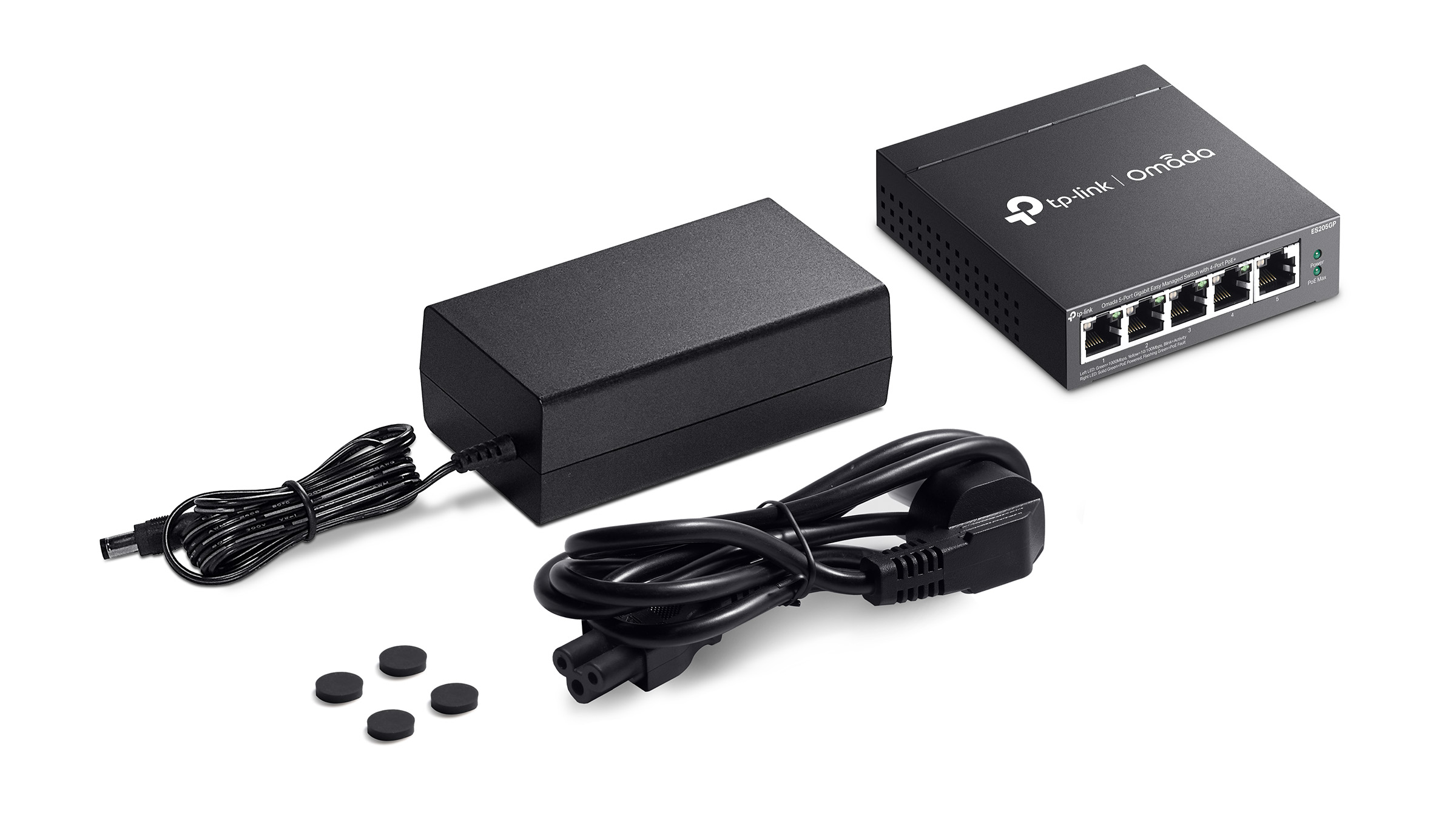

Package Contents

• ES205GP
• Power Adapter
• Installation Guide
• Rubber Feet

Environment

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
