EZVIZ HB90 Dual Kit 2K⁺ & 2K⁺ Dual-Lens All-Day Recording Wi-Fi Camera + Solar Panel 8W
PACKAGE:
1 x HB90 Dual Camera
1 x Solar Panel 8W
1 x Drilling Template
1 x Adjustable Mounting Bracket
2 x Screw Kit × 2
1 x Power Cable
3 x Regulatory Information × 3
2 x Quick Start Guide × 2
FEATURES:

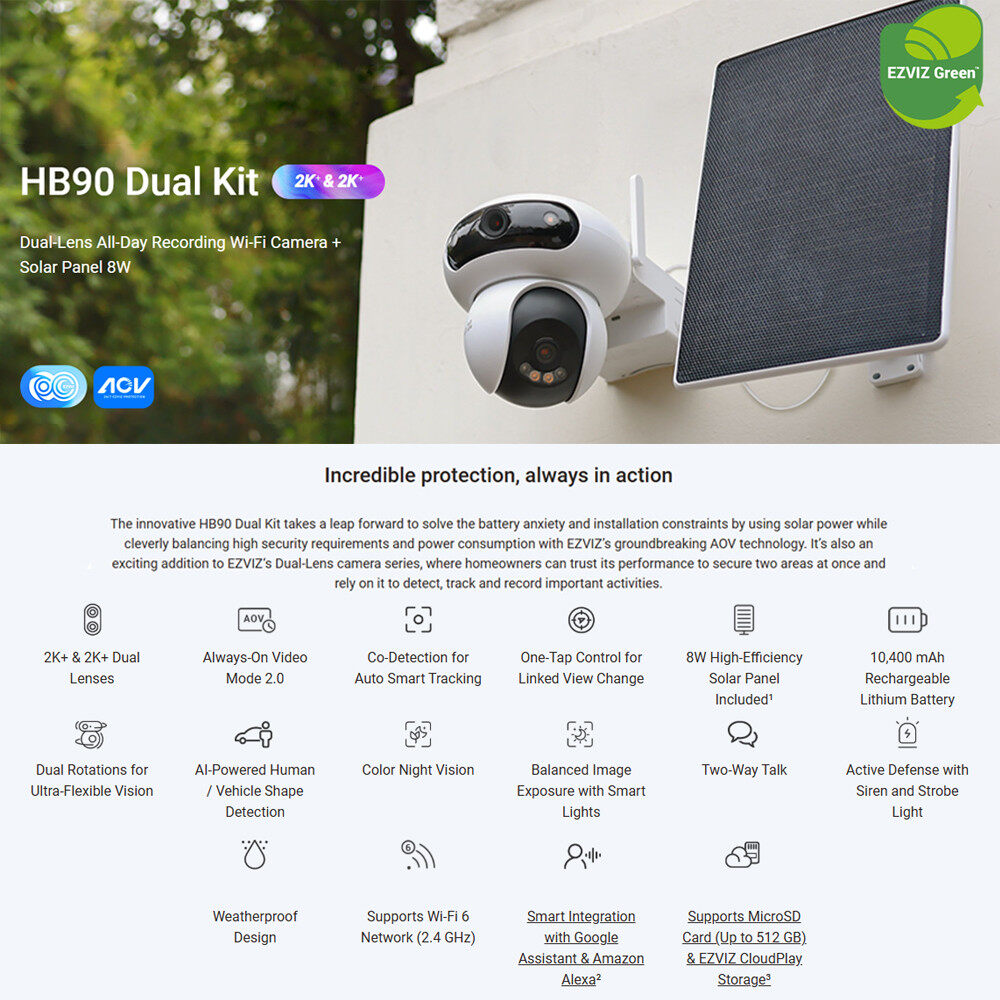

Incredible protection, always in action
The innovative HB90 Dual Kit takes a leap forward to solve the battery anxiety and installation constraints by using solar power while cleverly balancing high security requirements and power consumption with EZVIZ’s groundbreaking AOV technology. It’s also an exciting addition to EZVIZ‘s Dual-Lens camera series, where homeowners can trust its performance to secure two areas at once and rely on it to detect, track and record important activities.

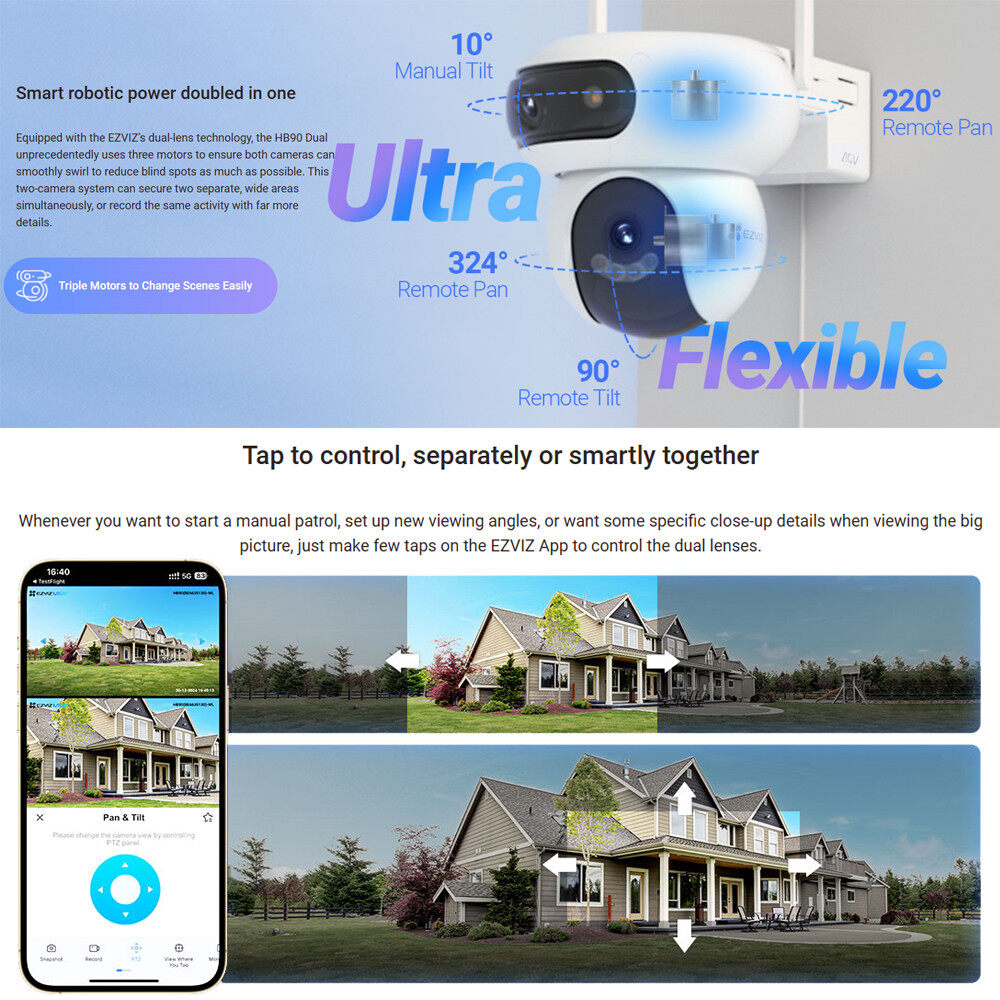

Smart robotic power doubled in one
Equipped with the EZVIZ’s dual-lens technology, the HB90 Dual unprecedentedly uses three motors to ensure both cameras can smoothly swirl to reduce blind spots as much as possible. This two-camera system can secure two separate, wide areas simultaneously, or record the same activity with far more details.
Tap to control, separately or smartly together
Whenever you want to start a manual patrol, set up new viewing angles, or want some specific close-up details when viewing the big picture, just make few taps on the EZVIZ App to control the dual lenses.
See everything that matters, from every angle to every detail
Equipped with two lenses in sharp 2K+ resolution, the HB90 Dual can capture wide-angle views and detailed shots with only one device. Now you no longer have to make a difficult choice between monitoring your entrance or backyard – the two lenses can turn to different perspectives at the same time.
Time for battery-powered all-day recording

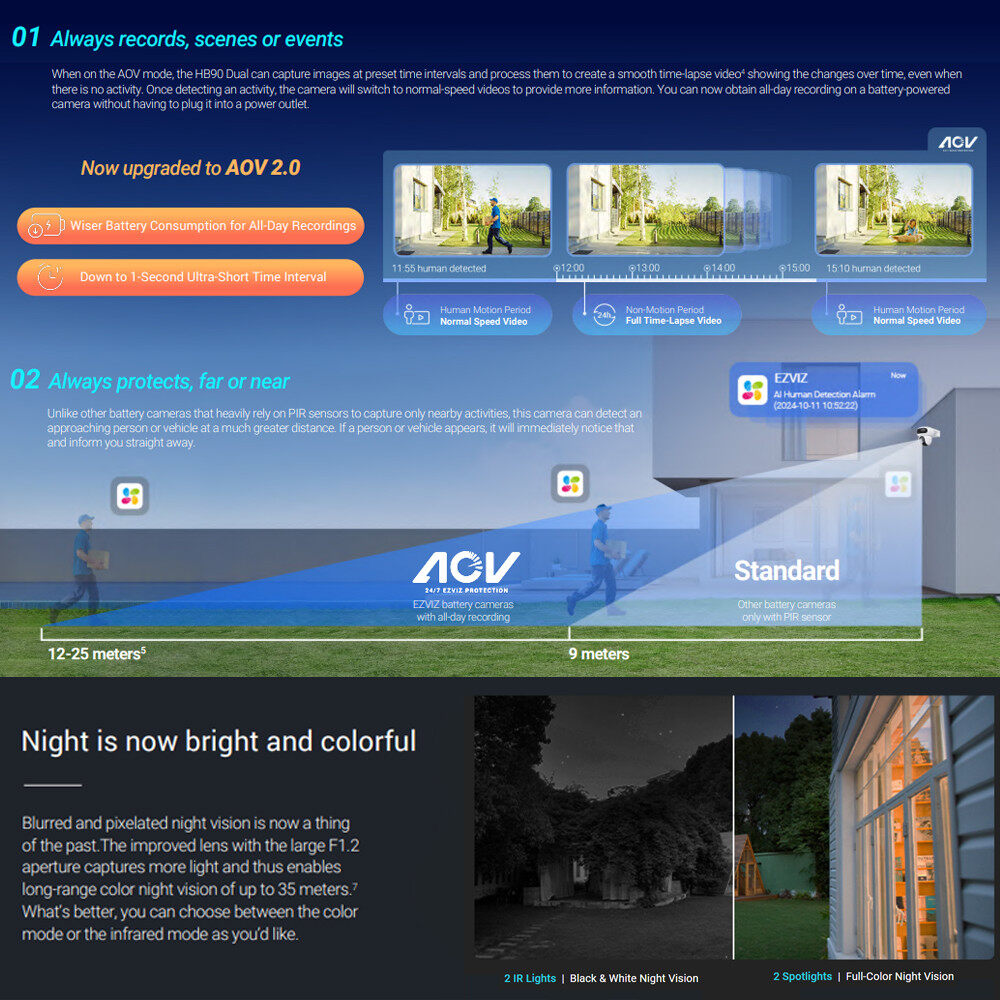

Unlike most battery cameras on the market, which have trouble detecting and recording videos due to short battery life and non-smart sensors, the camera is equipped with EZVIZ's groundbreaking AOV technology to enable all-day recording while ensuring a long standby time with a much greater detection distance.

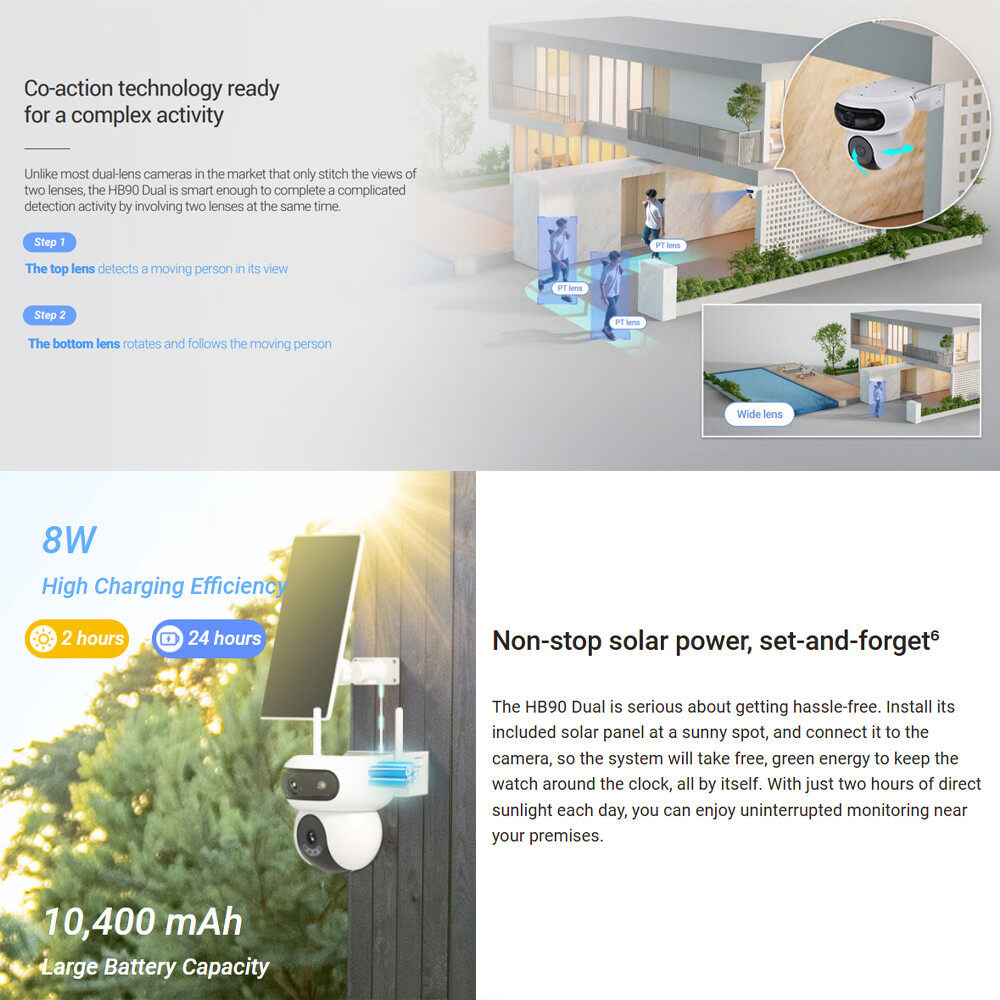

Non-stop solar power, set-and-forget⁶
The HB90 Dual is serious about getting hassle-free. Install its included solar panel at a sunny spot, and connect it to the camera, so the system will take free, green energy to keep the watch around the clock, all by itself.
SPECIFICATIONS:
Brand: Ezviz
Model: HB90 Dual Kit
Image Sensor: 1/3” 4-Megapixel Progressive Scan CMOS Sensor
Shutter Speed: Self-adaptive shutter
Lens: Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28°
PT Angle: Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90°
Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories)
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
Night Vision Distance: 35 m
Max Resolution: 2K+ (2560 × 1440)
Frame Rate: Max. 15fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD; HD; Standard; Adaptive bit rate
Audio Bit Rate: Self-adaptive
Max. Bitrate: 2 Mbps (Total)
Bluetooth: Supports
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n , 802.11ax
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK / WPA2-PSK, WPA3-Personal
Transmission Rate: 11b: 11Mbps,11g: 54Mbps,11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing: AP pairing
Minimum Network Requirement: 4 Mbps
Smart Alarm: AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-Way Talk: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Local Storage: Supports microSD card (max. 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
Operating Conditions: -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing)
Battery Capacity: 10,400 mAh
IP Grade: IP65
Power Supply: DC 5 V / 2 A (Adapter needs to be purchased separately)
Power Consumption: Max. 10 W

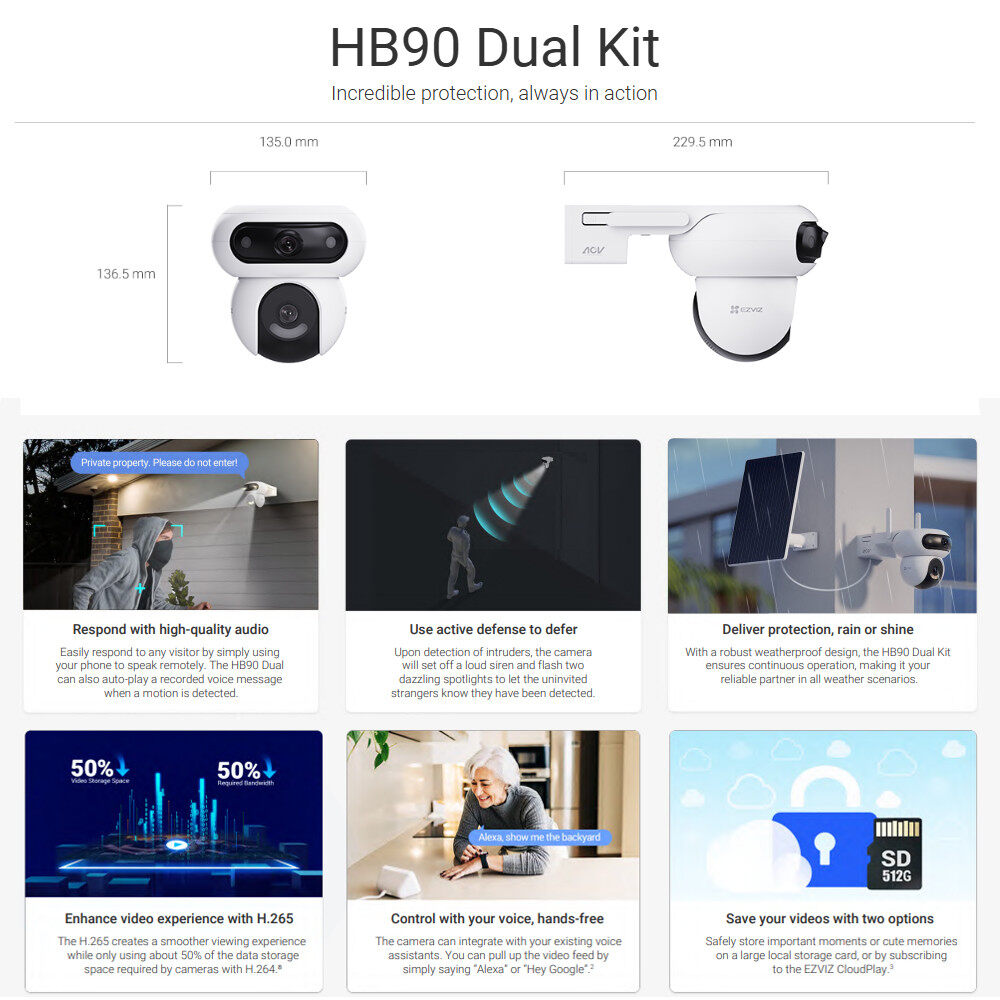

Product Dimensions: HB90 Dual: 135 × 136.5 × 229.5 mm (5.31 × 5.374× 9.04 inch）
Net Weight: HB90 Dual: 890 g (31.39 oz）
Certifications: CE / REACH / WEEE / RoHS
SPECIFICATIONS: (Solar Panel)
Brand: Ezviz
Model: Solar Charging Panel 8W
Power Voltage: 5.4 V ± 5%
Power Current: 1.48 A ± 5%
Open Circuit Voltage: 6.8 V ± 5%
Short Circuit Current: 1.64 A ± 5%
Max. Power: 8 W ± 5%
Interface: Type-C
Solar Cell Efficiency: 0.235
Operating Conditions: -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
IP Grade: IP65
Solar Cell Type: Monocrystalline solar cells
Power Cable Length: 3 meter
Product Dimensions: Solar Panel 8W: 267.3 × 186.5 × 17.5 mm (10.45 × 7.49 × 0.61 inch）
Packaging Dimensions: 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch）
Net Weight: Solar Panel 8W: 428 g (15.09 oz)
Weight with Package: 1930 g (68.08 oz)
