Specifications
model CS-S10-R100-1M4WFK
Camera
Image Sensor 4mm@F1.6 Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm
View Angle 100°(Diagonal), 84° (Horizontal), 46°(Vertical)
PT Angle 0-340° Horizontal, 37° Vertical
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
Privacy Manual privacy masking
Screen and Audio
Screen 4-inch touch screen (480 × 800)
Screen Tilt Angle 7° tilt angle vertically
Audio Capture 2-microphone array

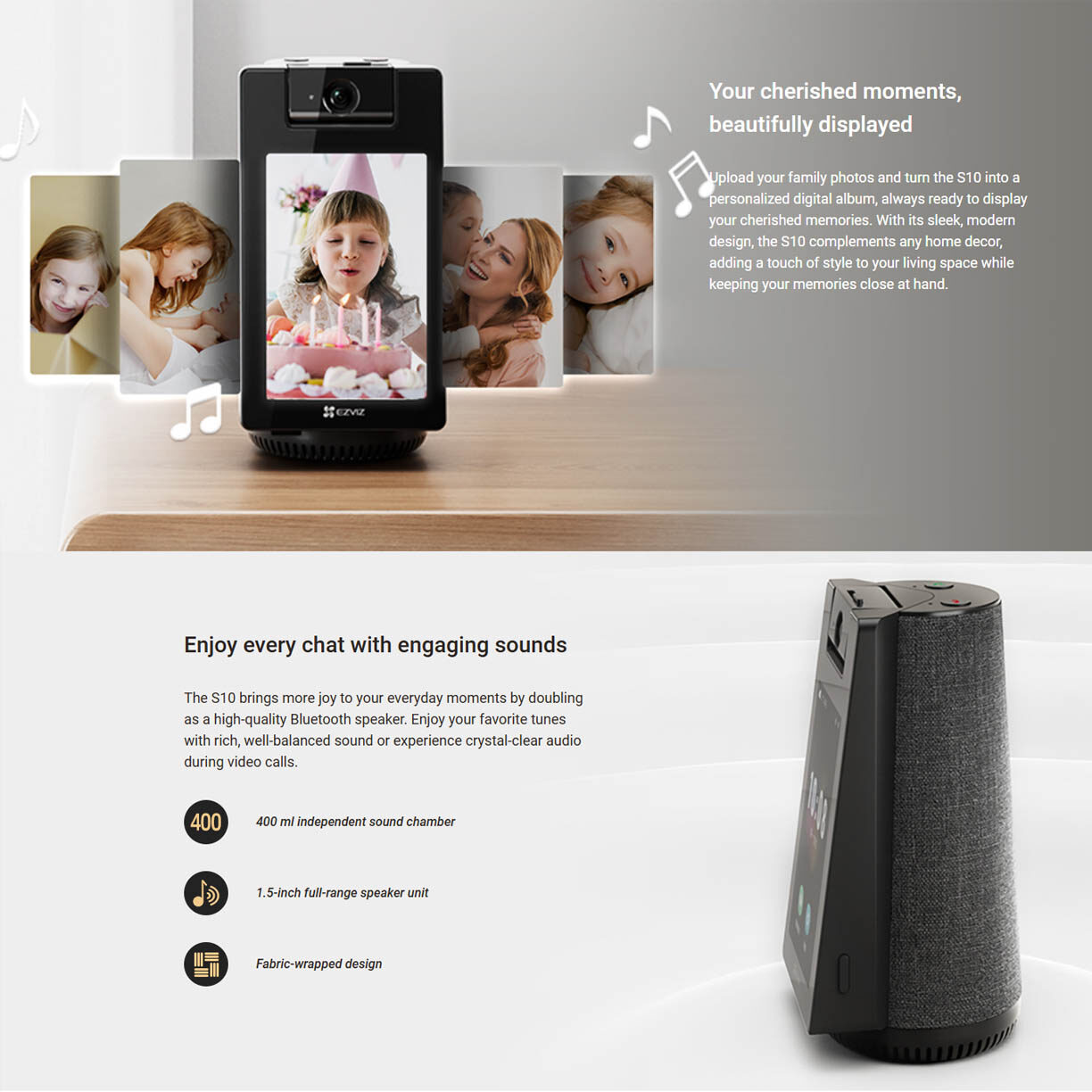

Speaker 3W
Screen and Audio
Max. Resolution 2K+(1504 × 2672)
Frame Rate Self-adaptive during network transmission
Video Compression H.264 / H.265
Video Bit Rate Adaptive bit rate
Wireless Transmission
Standard IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Frequency Range
2.4G: 2400~2483.5MHz
5G: 5150MHz-5350MHz; 5470MHz-5725MHz
Channel Bandwidth Supports 2.4G 20MHz, 5G 20/40/80MHz
Security WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b:11M, 11g: 54M, 11n:MCS7, 11a:54M, 11ac:MCS9, 11ax:MCS11
Output Power (EIRP)
2400MHz-2483.5: ≤20dBm (EIRP);
5150MHz-5350MHz: ≤23dBm (EIRP);
470MHz-5725MHz: ≤30dBm (EIRP)
Antenna Gain
2.4G: 3.1dBi
5G: 4.2dBi
Function
Smart Alarm
PIR motion detection
AI-powered human shape detection
AI-powered pet detection
Loud noise detection
Wi-Fi Pairing Bluetooth paring
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Interface
Storage Supports microSD card (max. 512 GB)
Power Type-C
Wired Network No
General
Operating Conditions
-10°C to 40°C (14°F to 104°F )
Humidity 95% or less (non-condensing)
Power Supply DC 5V / 2A
Power Consumption Max. 8 W
IR Range Max. 10 meters (32.8ft)
Dimensions 75 × 75 × 146 mm (2.9 × 2.9 × 5.7 inch)
Packaging Dimensions 160 × 98 × 172 mm (6.3 × 3.8 × 6.7 inch)
Net Weight 403 g (14.2 oz)
In the box
In the box - S10 Camera
- Power Adapter
- Power Cable
- Regulatory Information × 2
- Quick Start Guide
