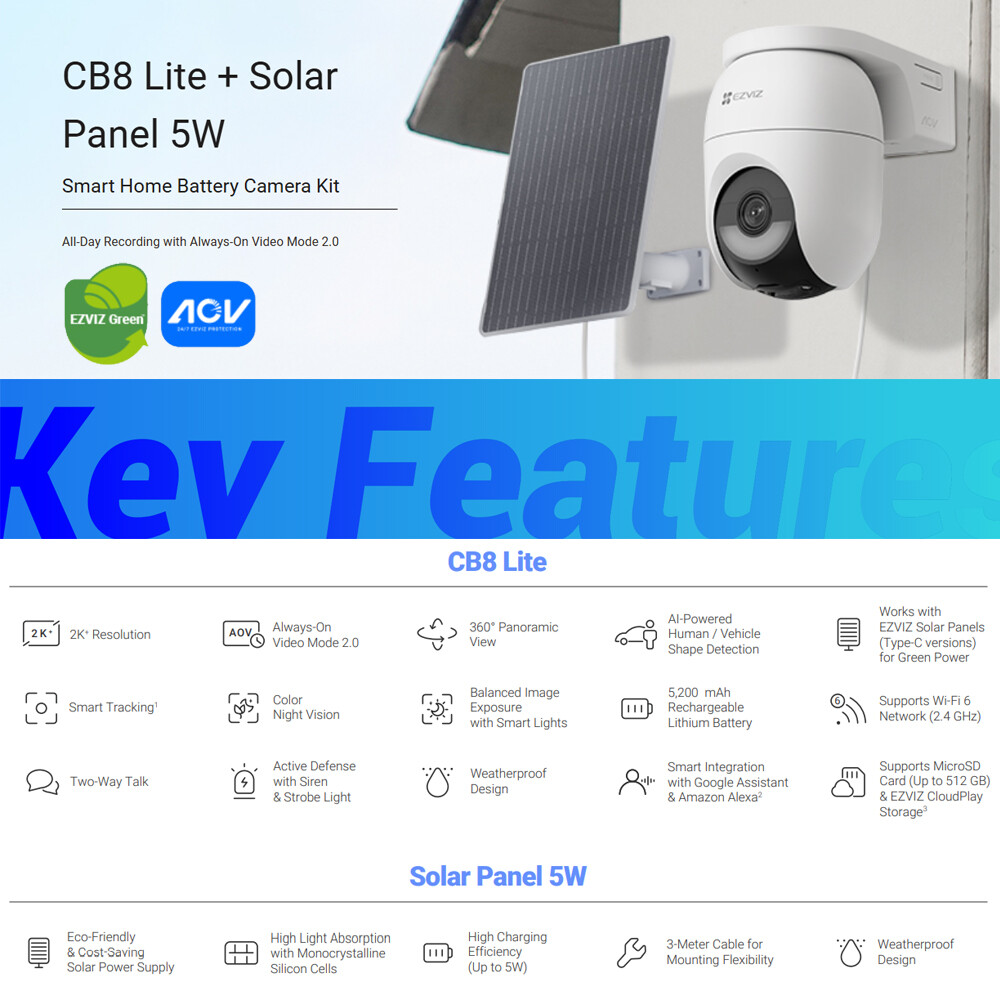

Ezviz CB8 Lite + Solar Panel 5W Wi-Fi Smart Home Battery Camera
PACKAGE:
-
1 x CB8 Lite Camera
-
1 x Solar Panel 5W
-
1 x Screw Base
-
1 x Power Cable
-
2 x Drill Template
-
2 x Screw Kit
-
1 x Regulatory Information
-
1 x Quick Start Guide
FEATURES:
All-round protection, always on
Gone are the days of hunting for the perfect installation spot. This smart kit lets you place your camera wherever security is most needed, without the hassle of wires or power outlets. The EZVIZ AoV technology supports all-day recording, while the solar panel adds even more convenience by keeping your battery camera powered with green power. Its AI-driven detection stays alert to the most important activities, adapting to your surroundings for smarter monitoring.
Time for battery-powered all-day recording
Unlike most battery cameras on the market, which have trouble detecting and recording videos due to short battery life and non-smart sensors, the camera is equipped with EZVIZ's groundbreaking AOV technology to enable all-day recording while ensuring a long standby time with a much greater detection distance.
Non-stop solar power, set-and-forget⁶
The CB8 Lite is serious about getting hassle-free. Install its included solar panel at a sunny spot, and connect it to the camera, so the system will take free, green energy to keep the watch around the clock, all by itself. With just two hours of direct sunlight each day, you can enjoy uninterrupted monitoring near your premises.
Easy and flexible installation
With an adjustable bracket that rotates 360 degrees and a 3-meter cable, the solar panel offers incredible installation flexibility, you can find the best location or angle for optimal sun exposure.
360-degree vision that is crisp and clear
Forget about installing multiple cameras to secure different directions – a single CB8 Lite can pan and tilt smoothly to capture an unrestricted 360-degree view. Its sharp 2K+ resolution lets you see fine details at different angles that matter to you.
Record an unfolding activity with auto smart tracking
Unlike a fixed-angle camera, which can easily lose sight of a moving person in its limited field of view, the CB8 Lite is able to change its sight to keep a close eye on an ongoing activity. As soon as a person enters the detecting zone, the CB8 Lite is activated to lock on the person, rotating to follow the entire movement.
Night is now bright and colorful
Blurred and pixelated night vision is now a thing of the past. Thanks to its built-in spotlights, the CB8 Lite delivers vivid and crisp visuals even in the dimmest environments.
SPECIFICATIONS
-
Brand: Ezviz
-
Model: CB8 Lite Kit
-
Image Sensor: 1/3" 4-Megapixel Progressive Scan CMOS Sensor
-
Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
-
Shutter Speed: Self-adaptive shutter
-
Lens: 4mm@ F1.6 Diagonal angle: 90°, Horizontal angle: 75° Vertical angle: 40°
-
PT Angle: Pan: 340°, Tilt: 80°
-
Day & Night: IR-cut filter with auto switch
-
DNR: 3D DNR
-
Night Vision: 15 m
-
Max Resolution: 4MP 2K+ (2560 × 1440)
-
Frame Rate: 15fps; Self-adaptive during network transmission
-
Video Compression: H.265 / H.264
-
Video Bit Rate: Ultra-HD; Full HD; Hi-Def; Adaptive bit rate
-
Audio Bit Rate: Self-adaptive
-
Max. Bitrate: 4 Mbps
-
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11 ax
-
Frequency Range: 2.4 GHz ~ 2.4835 GHz
-
Channel Bandwidth: Supports 20 MHz
-
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
-
Transmission Rate: 11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps
-
Wi-Fi Pairing: AP pairing
-
Protocol: EZVIZ Cloud Proprietary Protocol
-
Interface Protocol: EZVIZ Cloud Proprietary Protocol
-
Minimum Network Requirement: 4 Mbps
-
Smart Alarm: AI-powered human shape detection, AI-powered vehicle shape detection
-
Two-Way Talk: Supports
-
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark
-
Local Storage: Supports microSD card (max. 512 GB)
-
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)
-
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F) Humidity 95% or less (non-condensing)
-
IP Grade: IP65
-
Power Supply: DC 5 V / 2 A (Adapter needs to be purchased separately)
-
Battery Capacity: 5,200 mAh
-
Power Consumption: Max.10 W
-
Product Dimensions: 157 × 102 × 148 mm (6.18 × 4.02 × 5.83 inch)
-
Packaging Dimensions: 205 × 145 × 194 mm (8.07 × 5.71 × 7.64 inch)
-
Product Weight: 640 g (22.58 oz)
-
Weight with Package: 1,090 g (38.48 oz)
-
Certifications: CE / REACH / WEEE / RoHS
SPECIFICATIONS: (Solar Panel 5W)
-
Power Voltage: 5.7 V
-
Power Current: 877 mA
-
Open Circuit Voltage: 6.9 V
-
Short Circuit Current; 0.92 A
-
Max. Power: 5 W
-
Interface: Type-C
-
Solar Cell Efficiency: 0.235
-
Operating Conditions:-20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
-
IP Grade: IP65
-
Solar Cell Type Monocrystalline solar cells
-
Power Cable Length: 3 meter
-
Product Dimensions: 202.7 × 148 × 2.5 mm (7.98 × 5.83 × 0.10 inch)
-
Packaging Dimensions: 225 × 170 × 70 mm (8.86 × 6.69 × 2.76 inch)
-
Weight: 656 g (23.14 oz)
