● SG Seller
● BE11000 Tri-Band Wi-Fi 7 (5760 Mbps on 6 GHz + 2880 Mbps on 5 GHz + 574 Mbps on 2.4 GHz).†
● A clear 6 GHz band brings cleaner and wider band resources.‡
● 1× 2.5G Port unlocks the full potential of Wi-Fi 7.
● 320 MHz bandwidth enables many more simultaneous transmissions.‡

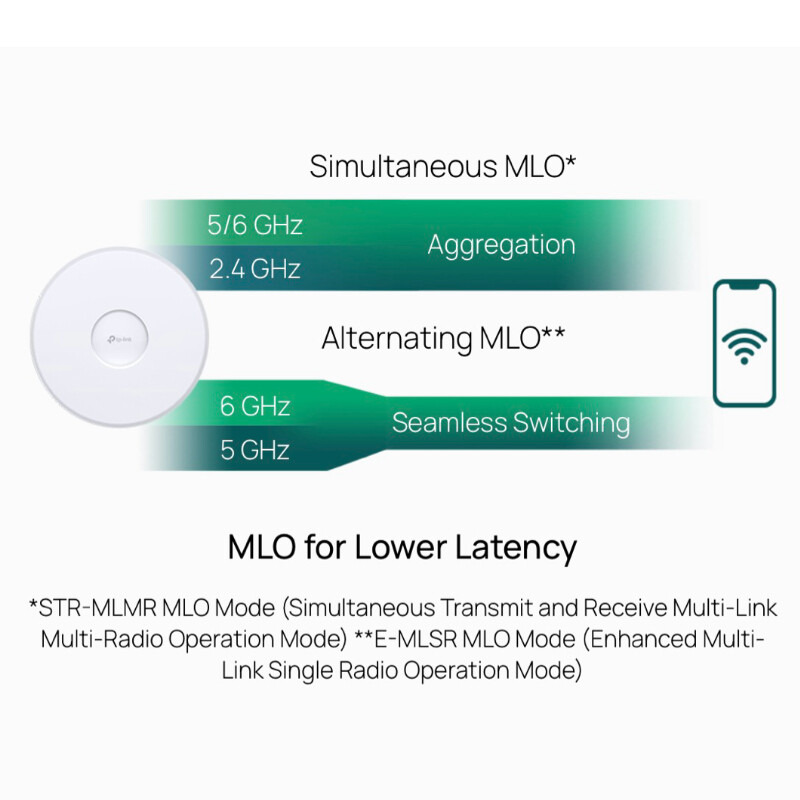

● Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
● Advanced Functions: Centralized management, mesh, and AI roaming.△
● Tech Specs:
● HARDWARE FEATURES
● Interface: 1× 2.5G Ethernet Port
● Button: Reset
● Power Supply: 802.3at PoE or 12V/2.5A DC
● Max. Power Consumption: 25.44 W (For PoE); 22.57 W (For DC)
● Dimensions ( W x D x H ): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
● Antenna: 2.4 GHz: 2× 4.0 dBi, 5 GHz: 2× 5.0 dBi, 6 GHz: 2× 5.0 dBi
● Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.
● Mounting: Ceiling / Wall Mounting (Kits Included)
● WIRELESS FEATURES
● Coverage: 140m2(1500 ft2)§
● Concurrent Clients: 380+**
● Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
● Frequency: 6 GHz, 5 GHz, and 2.4 GHz
● Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)†
● Wireless Functions: MLO‡, 4K-QAM‡, Seamless Roaming(802.11k/v/r), MU-MIMO‡, EHT320‡, Mesh△, BSS Coloring‡, OFDMA‡, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDS:24(8 on each band), Wireless Schedule, Reboot Schedule, QoS(WMM), Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication
● Wireless Security: Captive Portal Authentication, Access Control, Maximum number of MAC Filter: 4,000, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
● Transmission Power: < 25dBm (2.4GHz), < 25dBm (5GHz), < 23dBm (6GHz)
● Management Features
● Omada App: Yes
● Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
● Cloud Access: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
● LED ON/OFF Control: Yes
● Management MAC Access Control: Yes
● SNMP: v1, v2c, v3
● System Logging Local/Remote Syslog: Yes
● Web-based Management: Yes
● OTHERS
● Certification: CE, FCC, RoHS, IC
● Package Content: EAP772, Installation Guide, Ceiling/Wall Mounting Kit, Note: Power Adapter is NOT included.
● Environment: Operating Temperature: 0 °C–40 °C (32 °F–104 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing;
