Feature:
Sharp 3K HD Clarity: 5MP resolution captures every smile, gesture, and detail in stunning clarity—so your home always feels closer.
Get Closer with 13.5× Zoom: Pinch to zoom in the MERCUSYS app and focus on tiny objects or expressions, every detail stays sharp.
360° Full-Room Coverage: Smooth pan and tilt reveal every corner. With auto-patrol and smart motion tracking, no movement goes unnoticed.
Smarter AI-Powered Alerts: Enhanced by AI, the camera filters what matters most—identifying people, pets, vehicles, and unusual sounds like baby crying or glass breaking.
Real-Time App Control & Alerts: Stay in control from anywhere with instant notifications, keeping you connected to home anytime.
Local & Cloud Storage: Supports up to 512GB microSD cards and cloud storage for secure, flexible video backup. † ‡
Customizable Block Zone: Tailor your privacy zone to block unwanted views with ease.
Voice Control: Compatible with Google Assistant and Amazon Alexa, offering hands-free control for users.
Camera
Image Sensor
1/2.7'' Progressive Scan CMOS Not Starlight Sensor
Lens
Focal Length: 4 mm
Aperture: F2.0
Field of View: 103° (Diagonal), 86°(Horizontal), 46°(Vertical)
Motion Range
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 70° (116° Tilt Coverage)
Night Vision
850nm IR LED (40 ft / 12 m)
Interface & Button
1× RESET Button
1× MicroSD Card Slot (Up to 512 GB)
Video & Audio
Maximum Resolution
3K 5MP (2880×1620 px)
Digital Zoom
Supports 13.5x zoom
Frame Rate
15/20/25/30 fps (20 fps by default)
Video Compression
H.264
Live View
Yes
Image Enhancement
3DNR
BLC
Audio Input & Output
Built-in microphone and speaker
Audio Communication
2-way audio
Siren Volume
90dB (Level measured at 4-inch/10-cm distance)
Software
Security
On-Device Machine Learning
128 bit AES encryption with SSL/TLS
WPA/WPA2-PSK
Network
Network Connectivity
Connect via Wi-Fi
Wireless Connectivity
11Mbps(802.11b)
54Mbps(802.11g)
72.2Mbps(802.11n)
RTSP
Yes
ONVIF
Yes
Power
Power Source
9V DC Power Adapter
Input Voltage
100-240VAC, 50/60Hz, 0.3A
Output Voltage
9.0V/0.6A
Dimensions ( W x D x H )
78.4 × 78.4 × 105.6 mm (3.09 × 3.09 × 4.16 in)
Package Contents

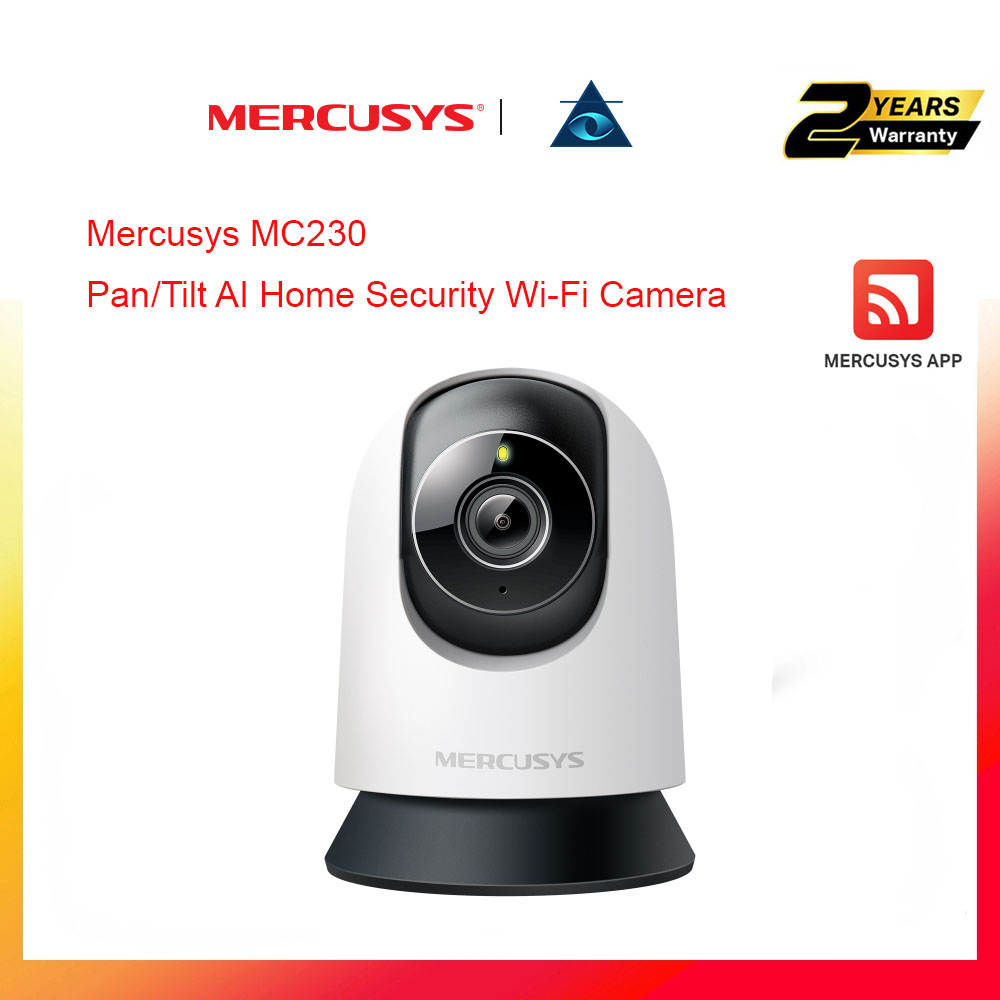

1x Pan/Tilt Home Security Wi-Fi Camera (MC230)
1x Power Adapter
2x Mounting Anchors
2x Mounting Screws
1x Mounting Template Sticker
Quick Start Guide
